Cisco GLC-LH-SMD 1000BASE-LX/LH SFP Transceiver in Dubai

The Cisco GLC-LH-SMD is a 1000BASE-LX/LH SFP transceiver offered by Cisco for multimode (MMF) as well as single mode (SMF) fiber optic networks. The Cisco 1000BASE-LX/LH SFP transceiver supports gigabit, Cisco GLC-LH-SMD in Dubai

As per the IEEE 802.3z standard for 1000BASE-LX, the Cisco GLC-LH-SMD SFP operates at 1300nm and supports a maximum of 10km over single-mode cable and 550 meters over multimode cable. In the context of older multimode cable, there is also support with the use of the mode conditioning patch cable, Cisco 1000BASE-LX/LH SFP in Dubai

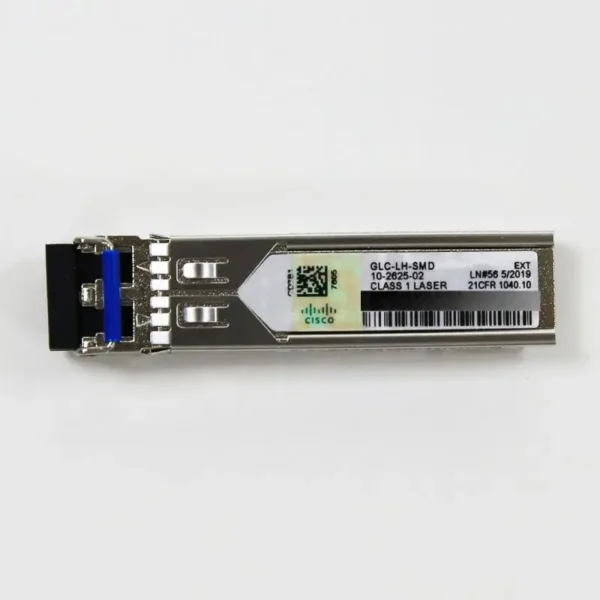

The Cisco SFP transceiver module for fiber optic cables has an operational temperature rating, support for Digital Optical Monitoring, as well as an LC/PC connector type. The physical looks of the Cisco GLC-LH-SMD SFP in Dubai, Cisco fiber optic SFP module in Dubai, Cisco Gigabit Ethernet SFP in Dubai, module can be viewed in the following image,

Specifications

Model Number: GLC-LH-SMD
Device Type: Plug-in optical module
Form Factor: SFP
Data Rate: 1.25 Gbps / 1.0625 Gbps
Operating Wavelength: 1310 nm
Power Budget: 10.5 dB (Single-Mode Fiber) / 8.5 dB (Multimode Fiber)
Maximum Transmission Distance: Up to 10 km
Transmit Power: -9.5 dBm to -3 dBm
Receiver Sensitivity: -20 dBm
Operating Voltage: 3.3 V
Maximum Power Consumption: 1 W
Connector Type: Dual LC
Supported Fiber Type: Single-Mode Fiber (SMF)
Operating Temperature Range: -10?C to 80?C
DDMI / DOM: Supported
Application: Gigabit Ethernet networks
Certifications: CE, FCC, TUV, UL, RoHS, ISO 9001:2001
