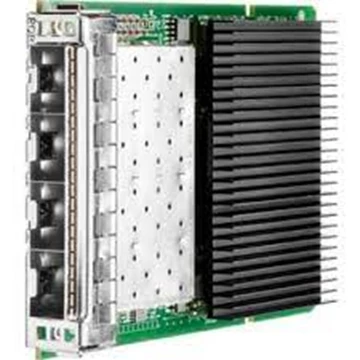

Broadcom N41T Quad-Port 10/100/1000BASE-T Ethernet x4 PCI Express OCP 3.0 Small-Form-Factor Card

Available at Seven Bridge Technology, BROADCOM N41T Quad-Port 10/100/1000BASE-T Ethernet PCI Express OCP 3.0 Small Form Factor Card in Dubai, UAE.

The BROADCOM N41T Quad-Port Ethernet Network Interface Card is designed to deliver reliable and energy-efficient Gigabit Ethernet connectivity for enterprise servers and data center environments. With four 10/100/1000BASE-T ports and OCP 3.0 small form factor design, this adapter provides scalable performance and seamless integration into modern server architectures.

Key Features

ROHS compliant network interface card

Energy Efficient Ethernet compliant with IEEE 802.3az-2010

Quad-port 10/100/1000BASE-T Ethernet connectivity

PCI Express x4 version 2.1 interface supporting 5 GT/s and 2.5 GT/s

Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations

MSI and MSI-X capabilities supporting up to 17 MSI-X vectors

I/O virtualization support for VMware NetQueue and Microsoft VMQ

Seventeen receive queues and sixteen transmit queues

Seventeen MSI-X vectors supporting per-queue interrupt to host

Function Level Reset support

ECC error detection and correction on internal SRAM

Quad RJ-45 connectors with integrated link and activity LEDs

Receive Side Scaling support for multicore client processors

TCP UDP and IP checksum offload support

Large Send Offload and TCP Segmentation Offload support

Wake-on-LAN support compliant with ACPI requirements

Network Controller Sideband Interface support over RMII-based transport physical interface

FRU support

SNMP statistics support including MIB II Ethernet-like MIB and Ethernet MIB

Comprehensive diagnostic and configuration software suite

Jumbo frame support with packet sizes up to 9.6 KB

Conforms to OCP 3.0 design specification version 0.85
